The world of robotics is filled with intricate challenges, and one engineer's journey to overcome them is about to get knotty! [The 5439 Workshop] embarked on a mission to create a powerful yet compact robot actuator, but the real twist lies in their innovative solution.
The Challenge: Creating a robot actuator that packs a punch without breaking the bank or taking up too much space. The conventional approach? Quasi-direct-drive motors, which integrate a brushless motor and gearbox. But these commercial drives come with a hefty price tag.
The Twist: Instead of breaking the bank, [The 5439 Workshop] decided to break the mold. They designed their own actuator, and here's where it gets intriguing: they opted for a rope drive mechanism. This unconventional choice, also known as a Capstan drive, offers a unique solution to the challenge of minimizing size and weight while maintaining power.
But why a rope drive? Well, it's a clever way to avoid the need for strong materials and high precision, which are typical requirements for planetary or cycloidal gearboxes. By using a rope wound around drums, the designer created a compact actuator. The real genius is in the arrangement: placing the drums in-line with the motor and using pulleys to guide the rope in a 'C' shaped path.

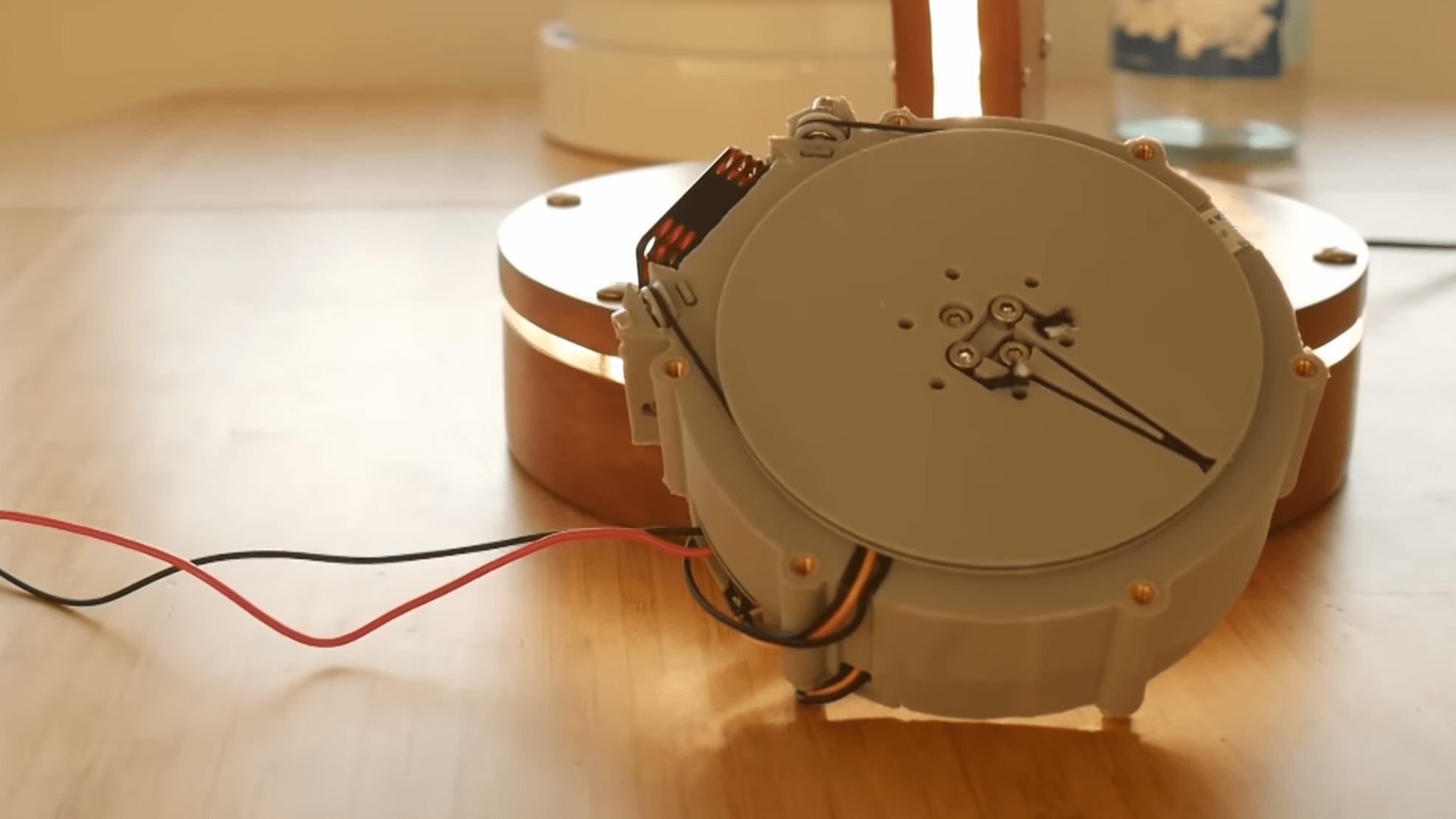

The Build: Crafting the motor involved a hand-wound stator inside a 3D-printed rotor with magnets, and Dyneema rope for its strength. However, the 3D-printed rotor caused some friction, literally, as it flexed and scraped against the housing due to magnetic attraction. A quick fix with metal sheets resolved this issue. The actuator achieved impressive torque, but the 3D-printed pulleys couldn't quite keep up, breaking under higher torque.
The Controversy: Is this rope-based approach a game-changer or a tangled mess? While it offers a unique solution, some might argue that simpler Capstan drives are more practical for those who don't require inline output shafts. Previous Capstan drives have been used in robot dogs, showcasing their speed and responsiveness.
So, is this rope-driven actuator a brilliant hack or a complex knot waiting to be untangled? The debate is open, and we'd love to hear your thoughts. Do you think this design is a step towards more accessible and affordable robotics, or are there better alternatives out there? Share your opinions and keep the conversation going!
